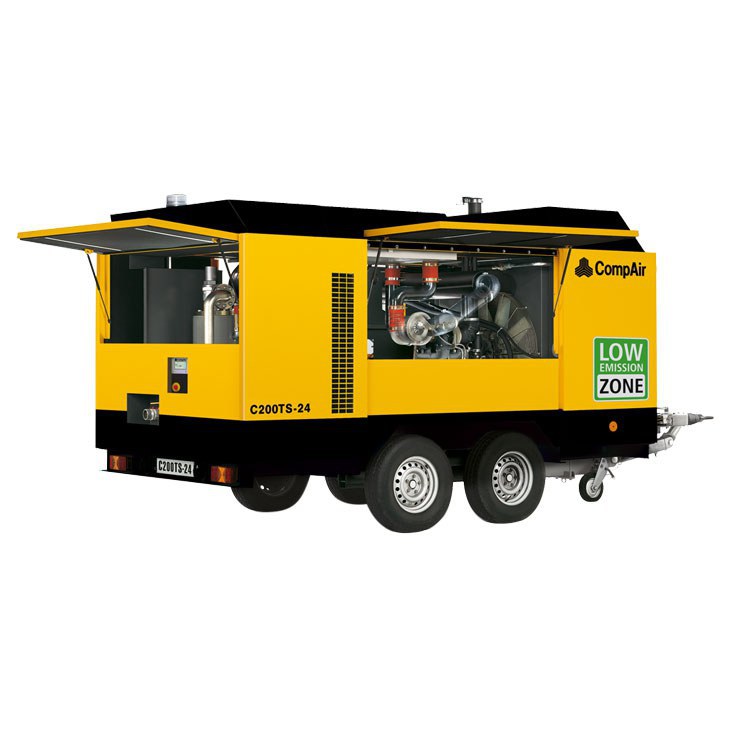

Turboscrew Compressors
- Reliable Cummins QSB 6.7 engine - Robust 6-cylinder turbo-charged diesel engine
- Soft start - Extends the engine life time by reducing engine stress during start-up
- Efficient TurboScrew technology - Up to 30 % less diesel fuel consumption
- 24 V electric system - Ensures sufficient power reserves in case of cold starts and a safe run-up ability
- Bolted single sheets - The steel canopy is mass galvanised and electrostatically coated, offering excellent protection
- Easy access side wing doors - Offering excellent accessibility for easy maintenance
-
Ordering Details
Part # Description C200TS-24 - C270TS-9 Turboscrew Compressors -
Technical Details
Specifications - C200TS-14 Volume flow 20 m³ / min Operating pressure 14 bar Compressed air outlet 3 x 3 / 4” and 1 x 2” Installed engine power 180kW Engine off load speed 1000 1 / min Engine full load speed 2400 1 / min Fuel tank capacity 370 Litres Weight - Portable compressor - adjustable towbar braked 3310 Kg Weight - Skid mount 3370 Kg Weight - Base mount 3210 Kg Length 5195 – 5440mm Width 1960mm Height 2350mm Length of the canopy 3750mm Power sound level 100 dB(A) LWA Pressure sound level 71 dB(A) LPA -
Downloads
- TURBOSCREW COMPRESSOR 2016 Data Sheet (1.7 MB) pdf
